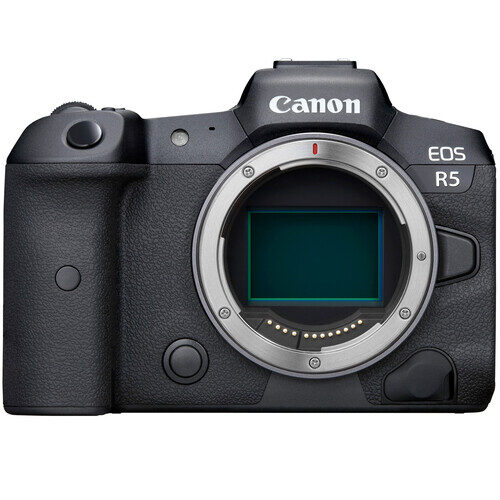

Canon EOS R5 Mirrorless Camera (Body only)

Name: Canon EOS R5 Mirrorless Camera (Body only)
SKU: 4549292157413
Availability: OutOfStock

Key Features

45MP Full-Frame CMOS Sensor
DIGIC X Image Processor
8K30 Raw and 4K120 10-Bit Internal Video
400MP In-Camera Files with No Software
Sensor-Shift 5-Axis Image Stabilization
12 fps Mech. Shutter, 20 fps E. Shutter
Dual Pixel CMOS AF II with 1053 Points
3.2″ Vari-Angle Touchscreen LCD
Subject Tracking with Deep Learning

CFexpress & SD UHS-II Memory Card Slots

For the professional image-maker who needs resolution, speed, and video capabilities, the Canon EOS R5 full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.

Beyond just resolution, the sensor also pairs with the refined DIGIC X image processor to usher in a new generation of Dual Pixel CMOS AF for quick, smooth, and intelligent focusing performance using 1053 selectable points that cover the entire field of view. This focusing system has also been updated to make use of Deep Learning technology for improved subject tracking as well as precise eye, face, and head-detection for both people and animals.

Complementing the imaging assets, the R5, while sporting a new design, also feels familiar to EOS 5-series users. An especially high-resolution 0.5″ 5.76m-dot electronic viewfinder provides a realistic 120 fps refresh rate while the 3.2″ rear touchscreen LCD monitor sports a vari-angle design to accommodate vlogging needs as well as benefit working from high and low angles. A top status LCD makes for an intuitive workflow and the camera also incorporates dual memory card slots—one CFexpress Type B, one SD UHS-II—along with Bluetooth and Wi-Fi wireless connectivity.

IBIS High Resolution 400MP Files

Using the EOS R5 with firmware 1.8.1 or later, the IBIS High Resolution shot mode can create 400 megapixel (approx.) files in-camera, without the need for external software. This feature can be used for some specific situations when a high-resolution file with fine detail is required. Examples include art reproduction and building signage.

45MP Full-Frame Sensor and DIGIC X Processor

Built around a newly developed 45MP full-frame CMOS sensor, the EOS R5 offers both high-resolution stills and video output and the fine-tuned DIGIC X image processor complements this with a wealth of speed. Sensitivity from ISO 100-51200, which can be expanded to ISO 102400, suits working in a variety of lighting conditions while quick continuous shooting up to 12 fps with a mechanical shutter, or silent 20 fps with an electronic shutter, is ideal for working with moving subjects.

8K30 Raw and 4K120 Video Recording

Benefitting more than just stills, the 45MP full-frame sensor also enables impressively high-resolution DCI 8K 30 fps raw video recording internally along with 4K recording up to 120 fps in 4:2:2 10-bit with Canon Log. HDR-PQ recording is possible, too, in-camera HDR production and external recording, via the HDMI port supports a clean 4K output at up to 60 fps. Both All-I and IPB compression options are available, along with the ability to use Dual Pixel CMOS AF when shooting at up to 8K raw.

HDMI 8K Raw Output to Atomos Ninja V+

Firmware update 1.4.0 adds the ability to output 8K30, 10-bit video for ProRes raw recording to the Atomos Ninja V+ recorder over an optional HDMI cable. (Please note, the recorder may become hot.)

Dual Pixel CMOS AF II

An updated Dual Pixel CMOS AF II features 1053 selectable focusing points, which cover approximately 100% of the image frame for wide and even coverage. This focusing system offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system’s ability to recognize subjects and maintain focus when working within changing or cluttered scenery.

Subject tracking has also been benefitted through the use of Deep Learning technology, which helps to gradually refine the focusing system’s ability to quickly and accurately recognize both people and animal subjects. This technology also supports the more refined eye, face, and head detection functions, for both people and animals, that are well-suited for portraiture applications.

Sensor-Shift Image Stabilizer

A first for EOS cameras, the R5 incorporates five-axis sensor-shift image stabilization that compensates for up to an impressive eight stops of camera shake for truly effective compensation of camera shake to suit handheld shooting with slower shutter speeds. This stabilization system also works in concert with lens-based optical image stabilization for both native RF lenses and adapted EF lenses.

Body Design and Wireless Connectivity

High-resolution 5.67m-dot 0.5″ electronic viewfinder provides a bright and detailed means for eye-level viewing and the quick 120 fps refresh rate offers natural motion rendering for a more realistic viewfinder experience.

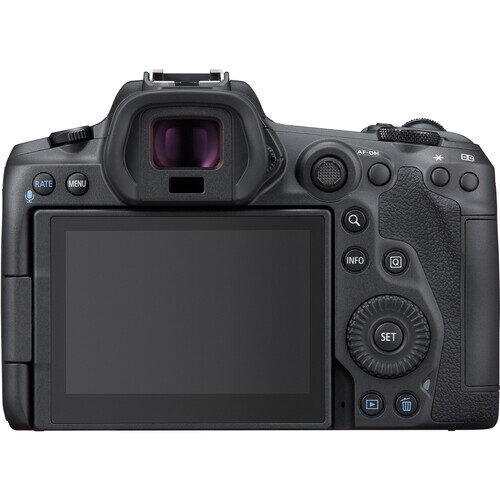

Rear 3.2″ 2.1m-dot LCD touchscreen features a vari-angle design that benefits front-facing recording, such as for vlogging needs, as well as working from high and low shooting angles.

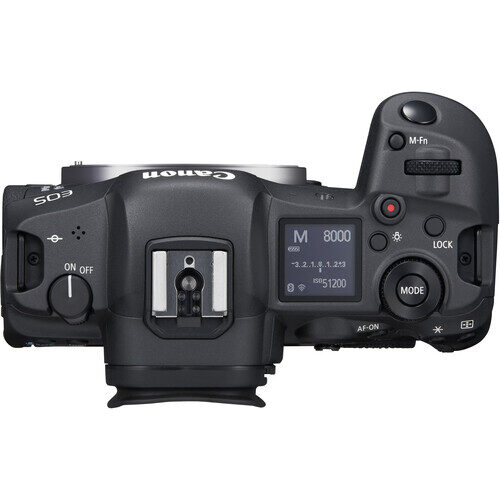

Top status LCD can be used to quickly review camera and shooting settings.

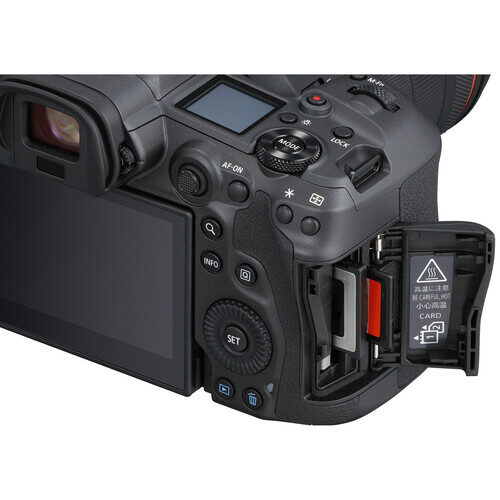

CFexpress Type B and SD UHS-II memory card slots are featured for flexible storage needs; the CFexpress slot is ideal for 8K video and high-speed, high-resolution burst shooting needs while the SD card slot retains a familiar form factor for wide compatibility.
Both a 3.5mm headphone and a 3.5mm external microphone port are featured for improved audio monitoring and recording capabilities.
Refined body design incorporates four distinct control dials across the body for intuitive tactile control and a joystick controller is used on the back of the camera for fast and intuitive focus point selection and menu navigation.

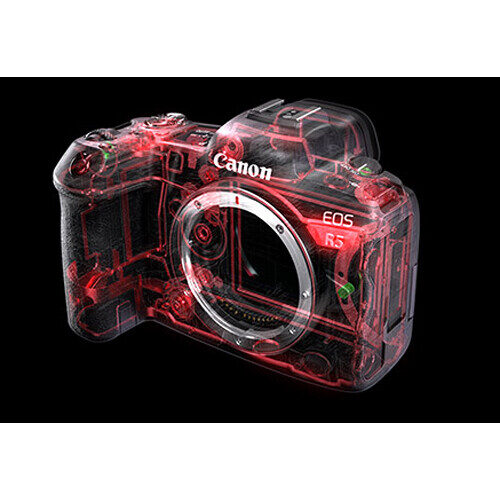

Durable, weather-sealed body design is built to handle tough working conditions and inclement weather.

Both 5 GHz and 2.4 GHz Wi-Fi bands are available for fast file transferring to a mobile device and Bluetooth is also available to provide constant device connection via the Canon Camera Connect app.

Canon R5 Specs

Key Specs

Lens Mount	Canon RF
Sensor Resolution	Actual: 47.1 Megapixel Effective: 45 Megapixel (8192 x 5464)
Image Sensor	36 x 24 mm (Full-Frame) CMOS
Image Stabilization	Sensor-Shift, 5-Axis
ISO Sensitivity Range	Photo 100 to 51,200 (Extended: 50 to 102,400) Video 100 to 25,600 (Extended: 51,200)
Continuous Shooting	Mechanical Shutter Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) Electronic Shutter Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Internal Recording Modes	H.265 4:2:2 10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s] H.264 4:2:0 8-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s] Raw 12-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s]
External Recording Modes	4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps
Media/Memory Card Slot	Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O	1x Micro-HDMI (Unspecified Signal) Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O	1x USB-C (5VDC at 1.5 A) Input
Other I/O	1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input) 1x Canon N3 Control Input
Wireless	2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
Display Type	Free-Angle Tilting Touchscreen LCD
Battery Type	1x LP-E6NH Rechargeable Lithium-Ion

Imaging

Lens Mount	Canon RF
Sensor Resolution	Actual: 47.1 Megapixel Effective: 45 Megapixel (8192 x 5464)
Image Sensor	36 x 24 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)	Crop Factor: 1x Additional Modes: 1.6x *Additional Crop Occurs in Select Video Modes
Image Stabilization	Sensor-Shift, 5-Axis
Built-In ND Filter	No
Capture Type	Stills & Video

Exposure Control

Shutter Type	Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed	Mechanical Shutter 1/8000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Electronic Shutter 1/8000 to 1/2 Second
Bulb/Time Mode	Bulb Mode
ISO Sensitivity Range	Photo 100 to 51,200 (Extended: 50 to 102,400) Video 100 to 25,600 (Extended: 51,200)
Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range	-3 to 20 EV
White Balance	2000 to 10,000K Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting	Mechanical Shutter Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) Electronic Shutter Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording	Yes
Self-Timer	2/10-Second Delay

Still Image Capture

Image Sizes	3:2 JPEG / Raw 44.7 MP (8192 x 5464) 22.4 MP (5808 x 3872) 11.6 MP (4176 x 2784) 5.9 MP (2976 x 1984) 3.8 MP (2400 x 1600)
Aspect Ratio	1:1, 3:2, 4:3, 16:9
Image File Format	JPEG, Raw
Bit Depth	14-Bit

Video Capture

Internal Recording Modes	H.265 4:2:2 10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s] H.264 4:2:0 8-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s] Raw 12-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s]
External Recording Modes	4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	Canon Log, Canon Log 3
Recording Limit	Up to 30 Minutes
IP Streaming	Yes
Built-In Microphone	Stereo
Audio Recording	AAC Audio LPCM Audio
